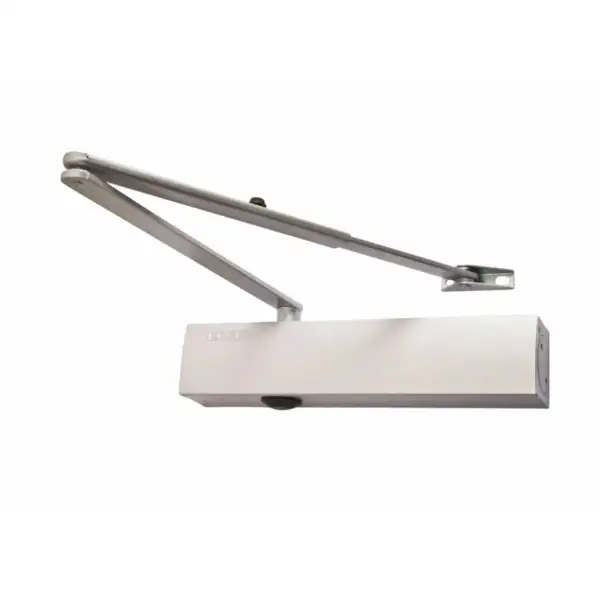

102845 GEZE TS4000S Silver Power Size 1-6 Heavy Duty Overhead Door Closer with Backcheck & Delayed Action (Complete with Arm & PA Bracket)

Description

Overhead door closer with link arm for single leaf doors of up to 1400 mm leaf width with delayed closing.

AREAS OF APPLICATION

• Fire and smoke protection doors
• Right and left single-action doors Single-action doors up to 1400 mm leaf width
• Door leaf installation hinge side and transom installation opposite hinge side
• Door leaf installation opposite hinge side in parallel arm installation possible

PRODUCT FEATURES

• Closing force with variable adjustment from EN2-6
• Can be used for right and left hand doors without conversion
• Delayed closing adjustable to adapt the closing force of the door up to approx 80° opening angle
• Hydraulic latching action which accelerates the door shortly before it is closed
• Closing speed can be individually adjusted
• Integrated back check, slows down doors that are thrown open forcefully
• Visual closing force display for easy control of the setting
• All functions can be adjusted from the front
