AFASDBSM/830 Astroflame ASDBSM Automatic Door Bottom Seal (37dB) Surface Mount - 830mm

Description

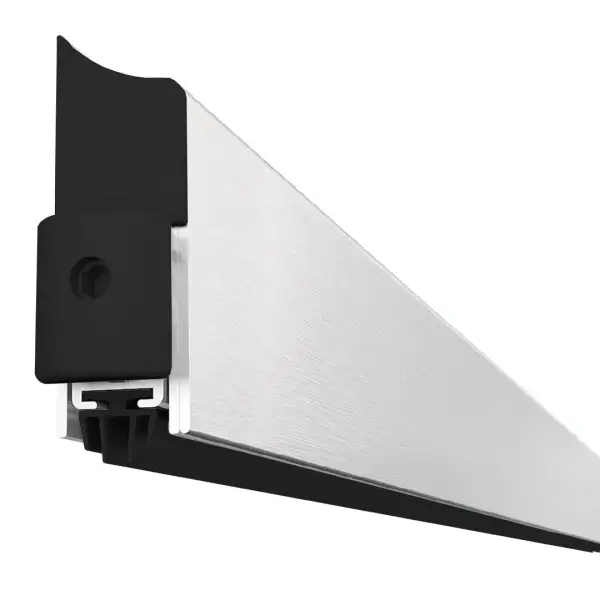

ASTRO ASDB/SM SEAL is a automatic door bottom seal which is spring loaded to lift clear of the floor as soon as the door leaf is opened by a few millimetres. An acoustically designed seal for surface mounted applications. It is operated automatically by pressure against the door jamb on its plunger and seals when the door closes and retracts automatically when the door is opened.

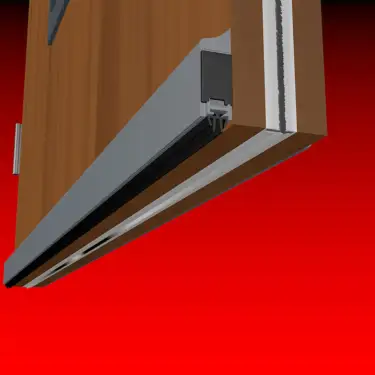

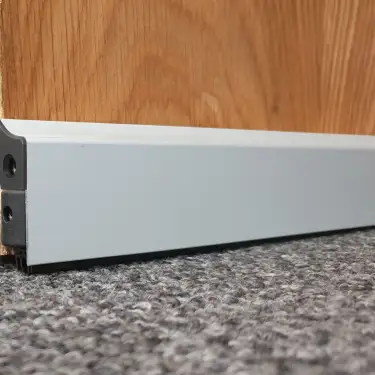

Can be fitted on the internal side of the door using the frame to activate the plunger or externally using the bumper provided.

Also available as a rebated door bottom seal version (for timber only doors) reference AFASDB.

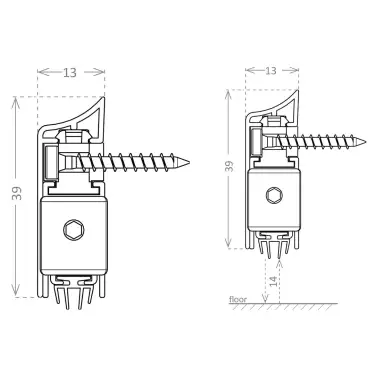

14mm maximum drop, Sealdrops on plunger side first.

Suitable for all types of swing doors.

Smoke Testing was conducted to BS EN 1634-3: 2004 smoke control tests for door and shutter assemblies, openable windows and elements of building hardware – Part 3: Smoke control test for door and shutter assemblies.

• Noise Reduction Index: Rw up to Rw 37dB*

• Maximum Drop: 14mm.

Maximum trimming:

20mm - 330mm

120mm - 430mm

150mm - 530mm to 1230mm
