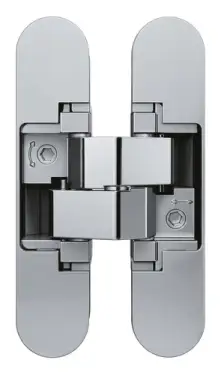

AN 160 3D Simonswerk ANSELMI Concealed Hinge 110mm x 24mm (60kg)

Description

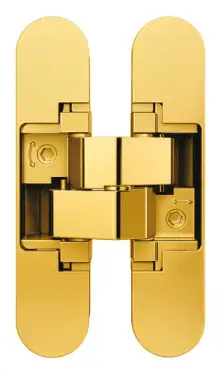

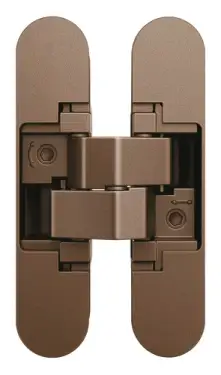

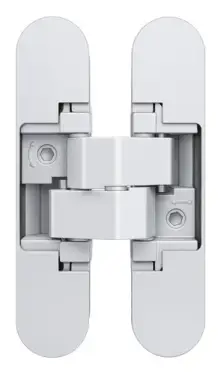

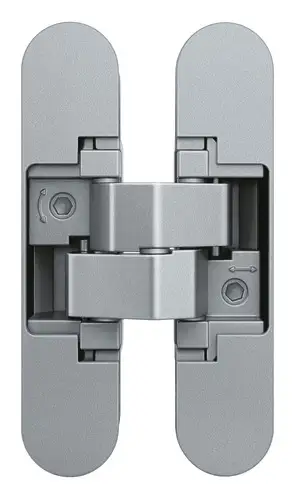

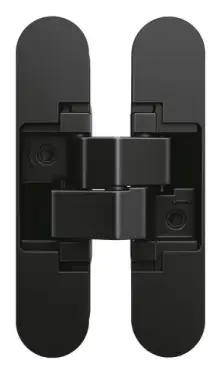

The Simonswerk Anselmi AN160 3D Adjustable Concealed Hinge for Unrebated Residential Doors up to 60 Kg. The extensive range of ANSELMI hinges offers high quality products for light interior doors. These concealed hinge systems are suitable for interior residential doors as well as for internal doors up to 60 kg and are available in several model versions. The hinge systems are three-dimensionally adjustable and guarantee a long lasting, maintenance-free operation of the door and are available in 6 aesthetical finishes..

The load capacity mentioned above refers to the use of 2 hinges per door leaf (900 x 2100 mm).

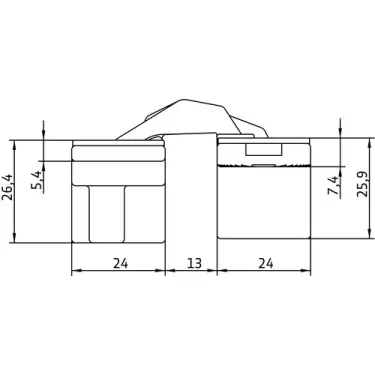

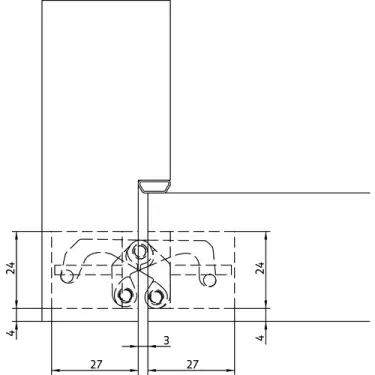

Technical details:

Load capacity: 60,0 kg

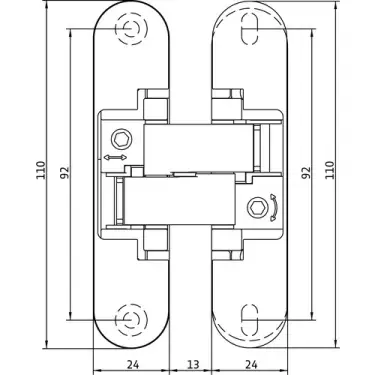

Overall length: 110,0 mm

Width (door part): 24,0 mm

Width (frame part): 24,0 mm

Cutter diameter: 16,0 mm

Collar ring diameter: 27,0 mm

Opening angle: 180°
