AR5500-L-PSS/PSS Hoppe Arrone Size 2-5 Overhead Door Closer c/w Backcheck - Polished Stainless Steel (87113144)

Description

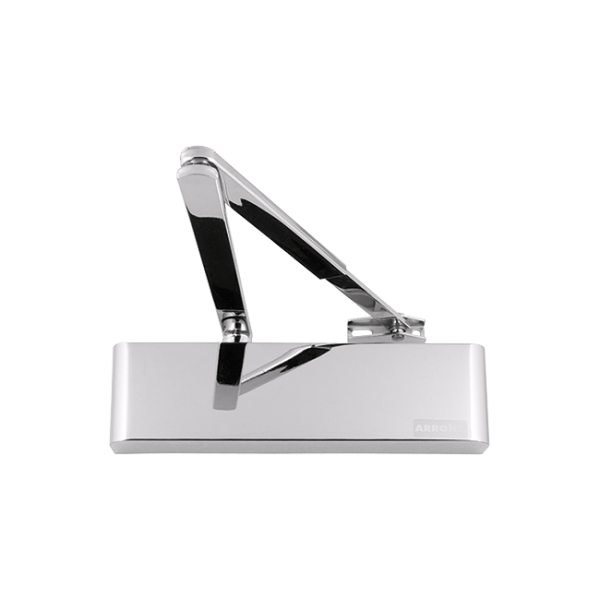

ARRONE overhead door closer:

• Power size: 2 to 5 adjustable by spring tension

• Function: Closing speed, latching speed, back check

• Cover: Slide cover

• Arm application: Fig 1 and Fig 6 fixing positions

• Maximum door width: 1250 mm (Fig 1), 1100 mm (Fig 6)

• Maximum door weight: 100 kg (Fig 1), 80 kg (Fig 6)

• Testing: BS EN 1154:1997

• Door mount pull (Fig 1): 3 | 8 | 5/2 | 1* | 1 | 3

• Door mount push (Fig 6): 4 | 8 | 4/2 | 1* | 1 | 3

• Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on up to 240 minute Steel un-insulated fire doors.

• CE Marked: AD5472, UKCA Marked: AD7692
