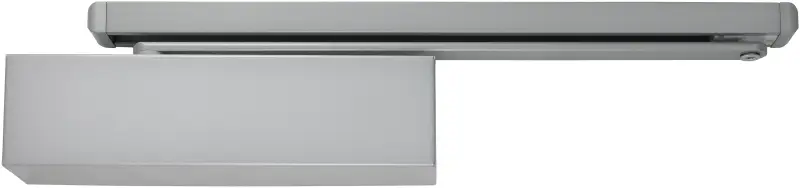

AR6509G-BX-SE Hoppe Size 2-5 Cam Action Slide Arm Overhead Door Closer with Square Cover (Push Side) - Silver (50008456)

Description

ARRONE overhead door closing device:

• Power size: 2 to 5 adjustable by spring tension
• Function: Closing, latching, backcheck, delayed action
• Cover: Box cover
• Maximum door width: 1,250 mm
• Maximum door weight: 100 kg
• Arm application: door mount push, transom mount pull
• Successfully type tested for conformity to all the requirements of BS EN 1154:1997
  - Door mount push side: 4 | 8 | 5/2 | 1* | 1 | 3
  - Transom mount pull side: 3 | 8 | 5/2 | 1* | 1 | 3
• Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors.
• CE Marked: AD5285, UKCA Marked: AD7690
• Certifire approved: CF5430, CE DOP: HUK0066, UKCA DOP: HUK0066-UK
