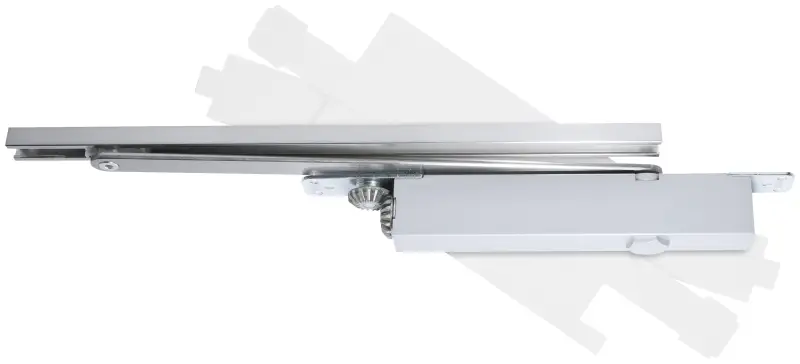

AR7383-KIT-SNP Hoppe Size 2-4 Concealed Cam Action Spring Door Closer c/w intumescent kit - Satin Nickel Plated (50002485)

Description

ARRONE overhead concealed door closing device:

• Power size: 2 to 4 adjustable by spring tension
• Function: Closing, latching, cushion stop
• Cover: no cover
• Maximum door width: 1,100 mm
• Maximum door weight: 80 kg
• Arm application: door mount concealed, transom mount concealed
• Successfully type tested for conformity to all the requirements of BS EN 1154:1997
  - Door mount pull side, transom mount pull side: 3 | 8 | 4/2 | 1* | 1 | 3
• Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60, 90 and 120 minute timber fire doors.
• CE Marked: AD5071
• Certifire approved: CF5181; DOP: HUK0026
• The AR7383 series door closing device has been successfully fire tested with the use of an intumescent kit (AR/INT-7383). The supply and fitting of this intumescent kit is essential to the products compliance with the fire test evidence it has gained. HOPPE take no responsibility for any product purchased and fitted to fire resistant door sets without intumescent protection as tested with the product.
