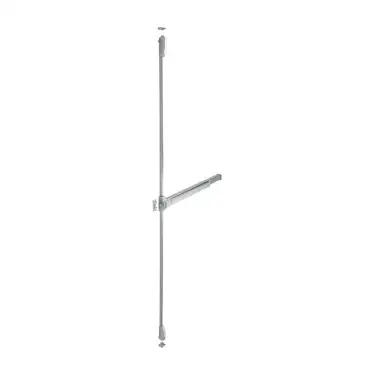

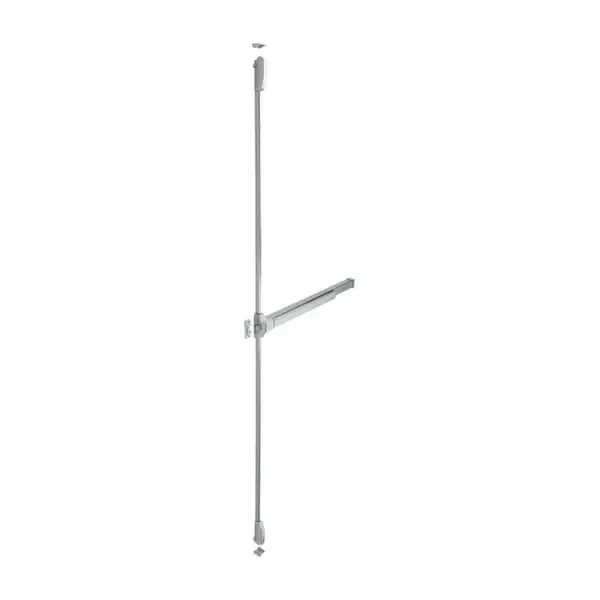

AR8800-3-SSS Hoppe Touchbar Panic Bolt 3 Point Locking - Satin Stainless Steel (87134042)

Description

ARRONE touchbar panic bolt- 3 point:

• Maximum door height: 2200 mm (extra length vertical rods available for doors up to 2500 mm high)
• Total device length: 962 mm
• Maximum door weight: 200 kgs
• Maximum door width: 1200 mm
• Fixing: Timber fixing screws supplied (Steel door fixings and strike plates available separately)
• Supplied with "Push Bar To Open" signage
• Testing: BS EN1125: 2008 (Classification 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | B | A ), BS EN1634 Part 1: Assessed for use on 30, 60 and 120 minute timber fire doors and 240 minute steel fire doors.
• CE Marked: AAA5002, UKCA Marked: AAA7652
• Certifire approved: CF5180, CE DOP: HUK0036, UKCA DOP: HUK0036-UK
• Note: In accordance with the scope of EN 1125, doors up to 2500 mm high and 1300 mm width are covered by the standard. Doors taller or wider than this will not be covered by the standard and the test evidence gained.
