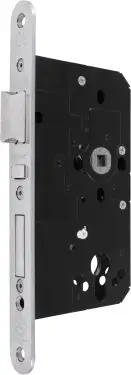

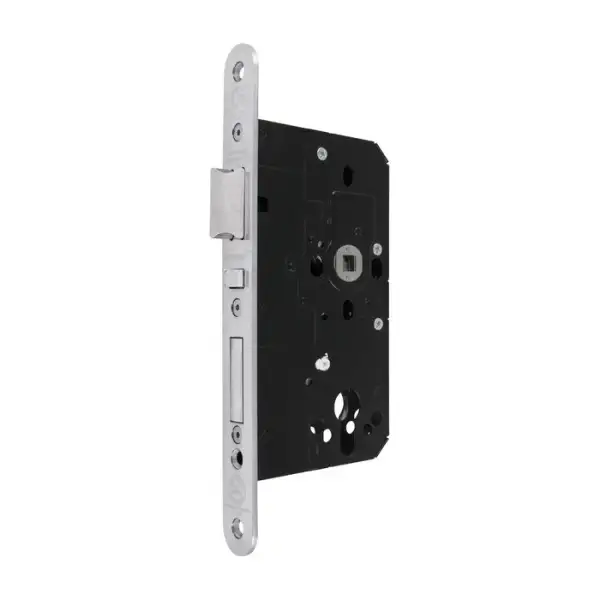

AR915-R-60-PSS Hoppe Arrone DIN Mortice Apartment Lock Radius Forend (60mm Backset) - Polished Stainless Steel (87107887)

Description

ARRONE mortice apartment lock case:

• Function: Latch bolt and deadbolt with escape operation
• Deadbolt projection: 21 mm, single throw
• Forend/strike material: Stainless steel
• Forend type: Single
• Follower: 8 mm split follower with self locating plate to allow easy reversibility of the escape function. Supplied with AR228A (100 mm) and AR228B (120 mm) spindles for split follower lock
• CE Marked: AG0067, ABB010, UKCA Marked:  AG7668
  - BS EN 12209: 3 | X | 8 | 1* | 0 | G | 4 | B | A | 3 | 0
  - BS EN 179: 3 | 7 | 6 | B | 1 | 4 | 4 | 1 | A | B
  - BS EN 179: 3 | 7 | 6 | B | 1 | 4 | 4 | 1 | A | D
• Certifire approved: CF530, CE DOP: HUK0012 and HUK0035, UKCA DOP: HUK0012-UK and HUK0035-UK
• Testing: BS EN 1634-1. Assessed for use on 30, 60, 90 and 120 minute timber fire doors and 240 minutes steel fire doors.
• To comply with BS EN 179 certification, only lever handles and associated fixings included in the test evidence must be used.
• Meets dimensional recommendations of BS 8300 and ADM for locks
• * The AR915 series lock case has been successfully fire tested with the use of an intumescent kit. The supply and fitting of this intumescent kit is essential to the products compliance with the fire test and CE marking evidence it has gained. HOPPE takes no responsibility for any locks purchased and fitted without sufficient intumescent protection.
