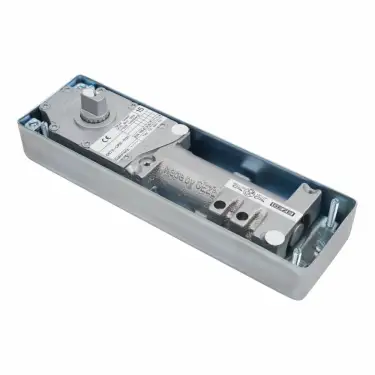

GEZE TS500NV Silver Power Size 1-4 Floor Spring Door Closer for Single/Double Action Doors with Backcheck

Description

*** COVER PLATES, STRAPS & PIVOTS SUPPLIED SEPERATELY - SEE RELATED PRODUCT BELOW ***

Floor spring for single leaf single and double-action doors of up to 1100 mm leaf width with adjustable closing force EN 1-4 and with optional hold-open function.

AREAS OF APPLICATION

• Fire and smoke protection doors Right and left single- and double-action doors
• Single- and double-action doors up to 1100 mm leaf width and 150 kg weight
• Floor mounting, concealed

PRODUCT FEATURES

• Closing force EN1-4 with variable adjustment
• Can be used for right and left hand doors without conversion
• Closing speed can be individually adjusted
• Hydraulic latching action which accelerates the door shortly before it is closed
• Integrated back check, slows down doors that are thrown open forcefully
• All functions can be adjusted from above and in the installed state
