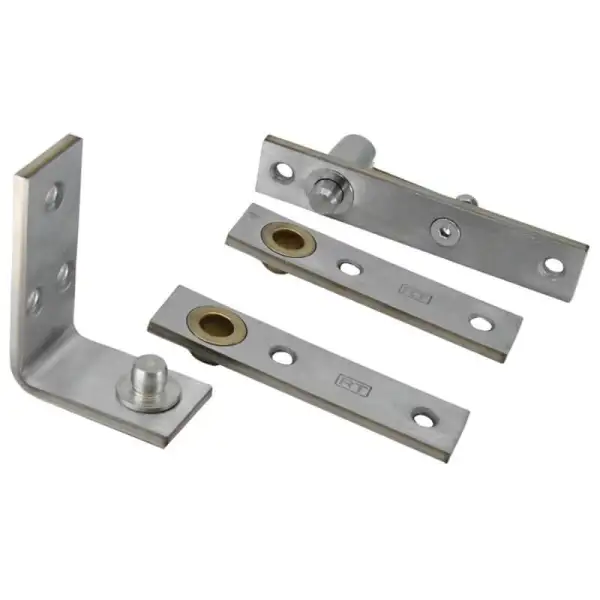

H131-100 Royde & Tucker Hi Load Double Action Door Pivot Hinge Set - Satin Stainless Steel

Description

Royde & Tucker’s standard double action pivots allow the door to swing in either direction. Top and bottom door plates have HI-LOAD maintenance free oil impregnated bronze bearings, housing’s are manufactured from grade 304 stainless steel. All are suitable for FD30 and FD60 doors, (approved for use on both single and double doors to BS 476, pt22) when fitted with appropriate intumescent pad pack.

• Made from Grade 304 stainless steel

• Suitable for fire rated FD30 and FD60 doors

• Tested to BS 476 pt22 for single and double doors

• Suitable for 44-54mm thick doors

• Top/bottom plates 110mm x 25mm x 5mm

• Top frame bracket 130mm x 25mm x 6mm

• Bottom frame bracket 80mm x 52mm x 32x5mm

• 80kg max load

• Suitable for use on doors up to 1100mm wide

• Supplied with fixings
