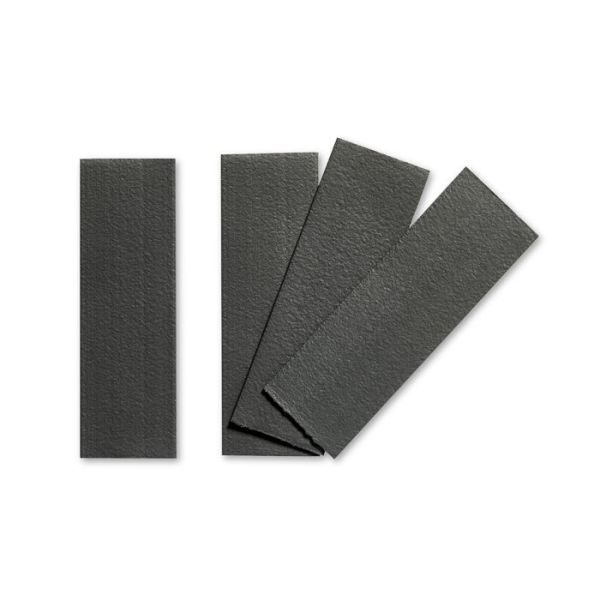

INT1102 - Carlisle Brass Eurospec Intumescent Hinge Pads 100mm x 36mm x 0.8mm to suit 102x89mm Hinges (Pack of 4)

Description

Intumescent Hinge Liners are designed to be fitted with all Fire Rated Hinges in order to comply with FD30/60 Fire Regulations. The intumescent material reacts to the heat of a fire and expands to seal any gaps around the hinge and maintain the fire resistance and integrity of the door. To Be Used in Conjunction With Fire Rated Hinges, to meet FD30 specification then one Intumescent Hinge Liner should be fitted to each leaf of the hinge. They are supplied in a pack of 4 liners so would suit one pair of hinges. To meet FD60 then two pads are required behind each lea. Intercalated Graphite 0.8mm Sheet, available in 3 Widths to suit various hinges; 30mm - To suit 102 x 76mm Hinges - Most commonly required, 36mm - To suit 102 x 89mm Hinges, 40mm - To suit 102 x 102mm Hinge. Supplied as a pack of 4 Liners.
