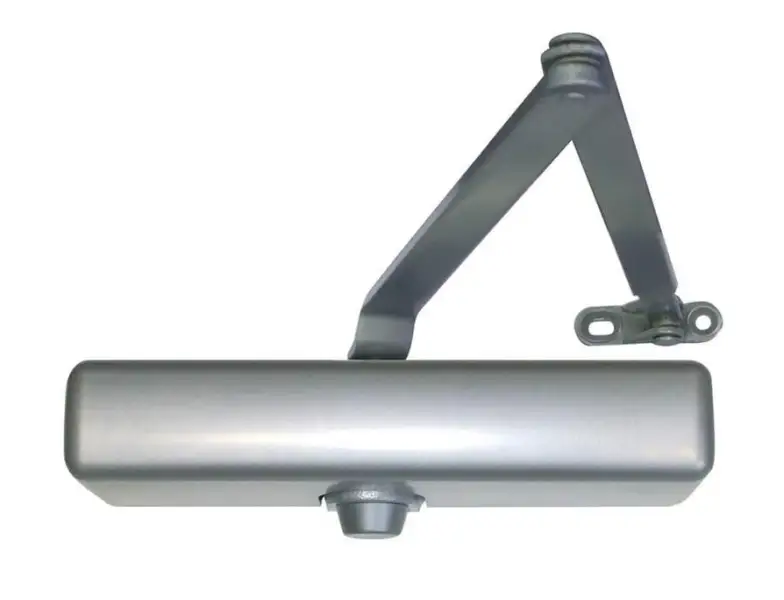

LCN 1261P.US28 Standard Duty EN.1-4 Overhead Door Closer with Backcheck & Plastic Cover - Silver

Description

Standard Duty Closer w. Backcheck & Plastic Cover - Adjustable EN Spring Sizes 1—4 (ANSI 1—5). Pull the Side of the Door, Push the Side of the Door or Top Jamb (Push Side) Transom.

Suits doors <102 kilos

UKCA & CE certification applies to all applications

The 1261 is adjustable through EN spring sizes 1—4 (ANSI 1—5) and mounts to the most common commercial footprint. The 1260 Series also features a complete line of regular and extra-duty arms and LCN's peel-n-stick installation templates. The 1261 is LCN’s most competitively priced closer designed for demanding standard-duty applications.

• Hinge (pull side) mounting

• Top jamb (push side) mounting

• Stop face (push side) mounting

• Non-handed for right and left swinging doors

• Adjustable hydraulic backcheck cushions opening swing prior to 90 degrees

• Separate regulation of general closing speed and latching speed

• Joints in arm and shoe adapt to uneven trim

• Reversible shoe to boost latching power on double lever arms

• All Weather Fluid - Performs without variation: Manual Closers - between -35° to +49°C, Electronic HO Closers & Automatic Operators - between +2° to +49°C. At approx. +75°C, the fluid will begin to leak from the mechanism. The flash point is approx. 110°C

The LCN 1260 Series combines the best features from the previous 1070 and 1370 series into a single versatile and economical cast iron closer with dual mounting capability. It is best suited to standard duty situations on perimeter and internal doors where a medium level of traffic is anticipated.
