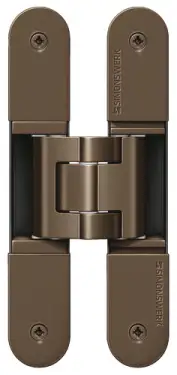

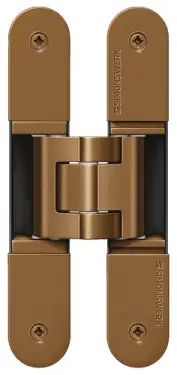

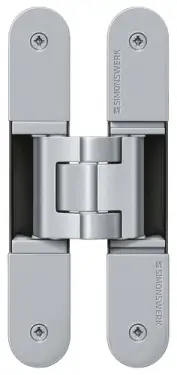

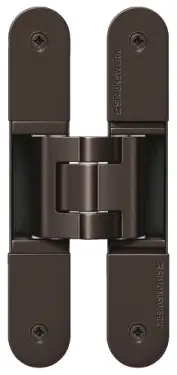

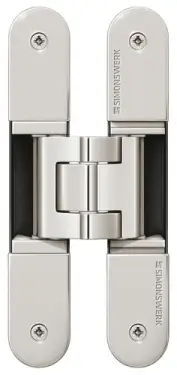

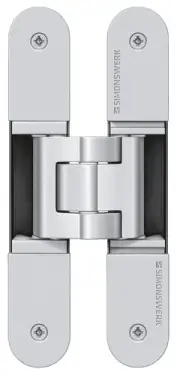

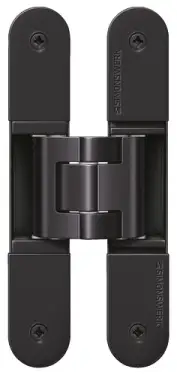

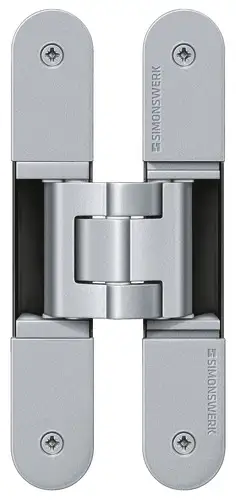

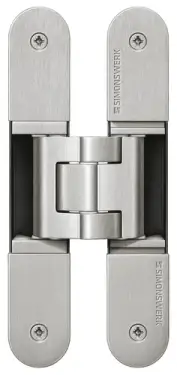

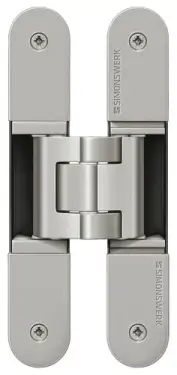

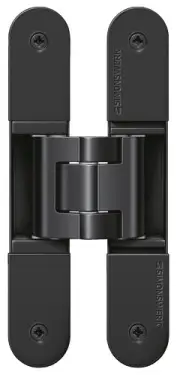

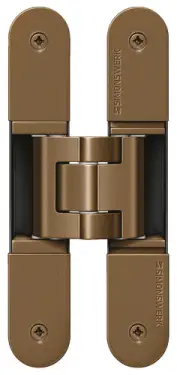

TE 340 3D FR Simonswerk TECTUS Fire Rated Concealed Hinge 160mm x 28mm (80kg)

Description

SIMONSWERK TECTUS hinge TE 340 3D FR with integrated intumescent kit. Completely concealed for unrebated doors with timber, steel and aluminium frames. With comfortable 3D adjustment, load capacity up to 80 kg, opening angle up to 180°, overall length 160 mm, right hand and left hand applicable, maintenance-free slide bearings, three-dimensionally adjustable: side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm.

The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m)

Technical details:

Load capacity: 80,0 kg

Overall length: 160,0 mm

Width (door part): 28,0 mm

Width (frame part): 28,0 mm

Cutter diameter: 24,0 mm

Collar ring diameter: 30,0 mm

Opening angle: 180°

Non fire Rated version available (TE 340 3D) - please find this in the related products below
