TE 540 3D Simonswerk TECTUS Concealed Hinge 200mm x 32mm (120kg)

Description

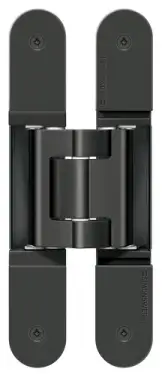

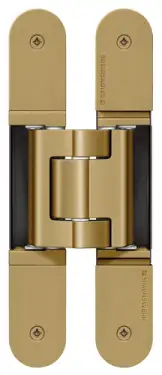

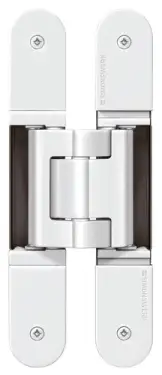

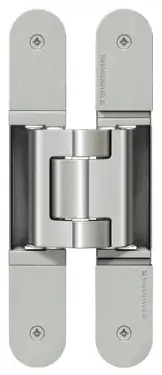

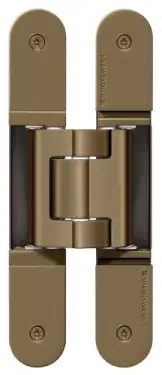

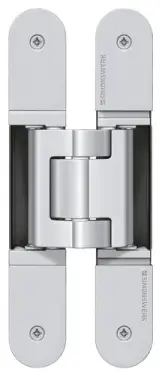

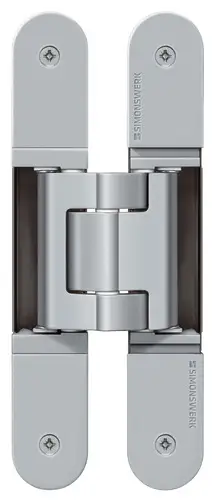

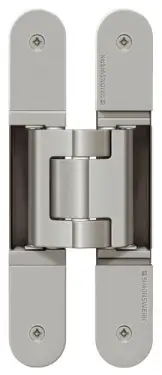

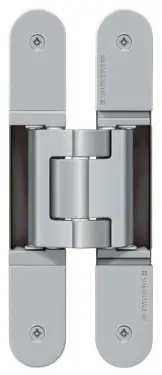

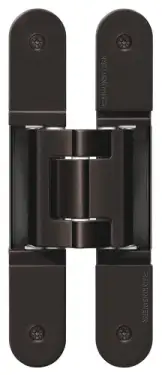

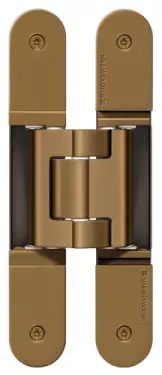

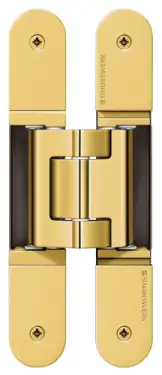

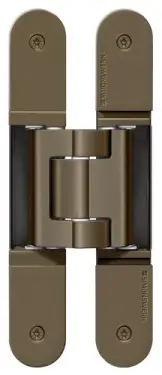

SIMONSWERK TECTUS hinge TE 540 3D. Completely concealed for unrebated doors with timber, steel and aluminium frames. UL-certified, with comfortable 3D adjustment, load capacity up to 120 kg, opening angle up to 180°, overall length 200 mm, right hand and left hand applicable, maintenance-free slide bearings, three-dimensionally adjustable: side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm.

The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m)

Technical details:

Load capacity: 120,0 kg

Overall length: 200,0 mm

Width (door part): 32,0 mm

Width (frame part): 32,0 mm

Cutter diameter: 24,0 mm

Collar ring diameter: 30,0 mm

Opening angle: 180°

Fire Rated version available (TE 540 3D FR) - please find this in the related products below
