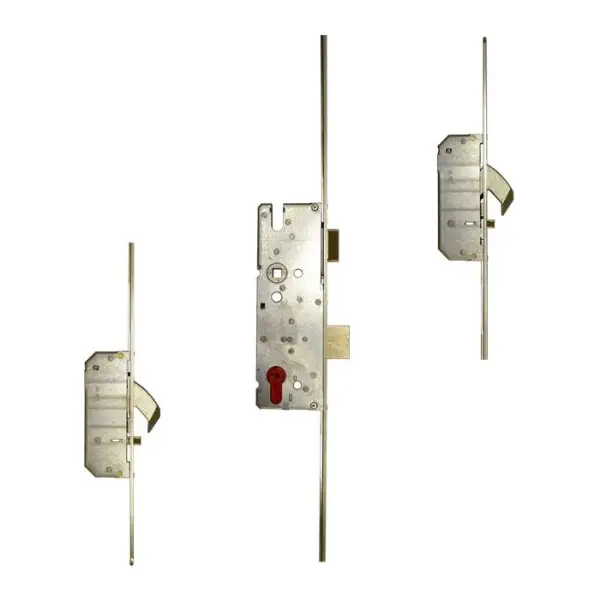

WINKHAUS AV2 Autolocking 2 Hook Multipoint Lock (Right Hand) - 45mm Backset - 20mm Radius Faceplate (2559721)

Description

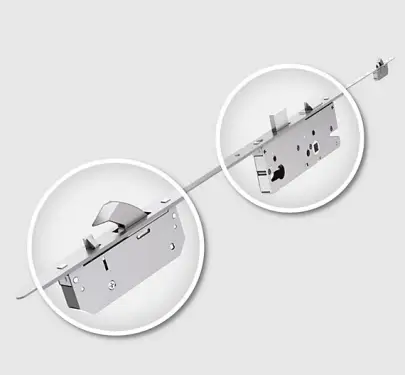

The automatic locking AV2 2 hook multipoint lock has a 20mm radius faceplate and is ideal for use on timber doors. The AV2 Autolock has the optional capability of becoming an electronic access controlled locking system. The lock is designed to accept a “screw on” 12v electronic motor which can then be controlled by means of industry standard multi option access control systems. When activated the two solid high tensile steel hooks and central latch are withdrawn thus forming the blueMatic AV2-E. The extreme versatility of the blueMatic AV2-E Electronic Locking system is achieved through its easy integration with all access control systems which subsequently leads to its suitability for many different applications.

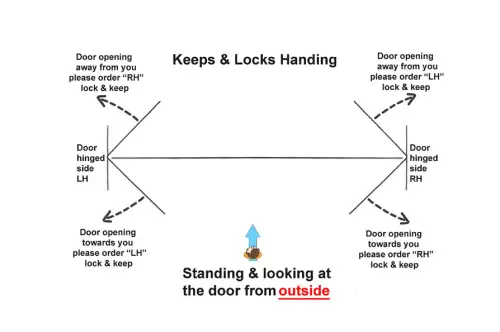

- Handed : Right hand version

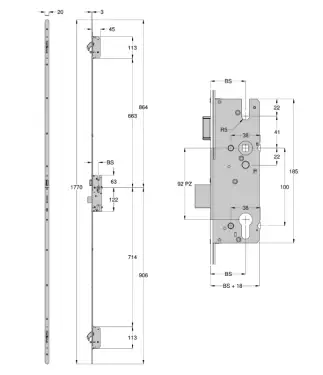

- Sizes -

- Centres - 92mm

- Faceplate - 20mm

- Overall - 1770mm

- Backset - 45mm
