WINKHAUS FGTE Single Rebated (22mm Lip) Slave Espag Lock (Left Hand) - 45mm Backset (5013846)

Description

The Winkhaus security locking system ThunderBolt unites high security with extremely easy installation. Whether they are made of PVC-U, timber or aluminium, doors will all close firmly thanks to the angled shape of the twin deadbolts. Solid twin deadbolts in the upper and lower positions. 50% greater fitting tolerances compared to conventional hook locking systems. Centre gearbox strength increased by 30% to further reduce the risk of malicious abusive loads. Tested to satisfy PAS24 and the forthcoming EN14351-1:2006 security standard. Approved by the Police " Secured by Design" Security initiative. The lock has a protective surface coating in excess of BS EN1670 Grade 4.

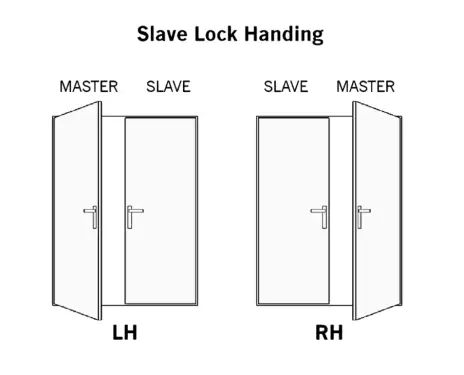

- Slave LH Espag Lock to be used in conjunction with master lock 5004484 on french double handle doors. - Locking by top and bottom shootbolts - different sizes available - see 5036004, 2930754, 2500498 & 2096392.

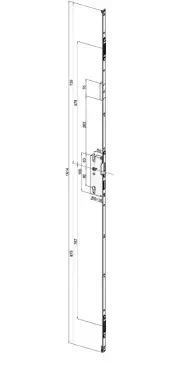

Sizes:

- Centres - 92mm

- Faceplate - 20mm

- Backset - 45mm

- 22mm distance to mid rail from the end of strike tongue.
