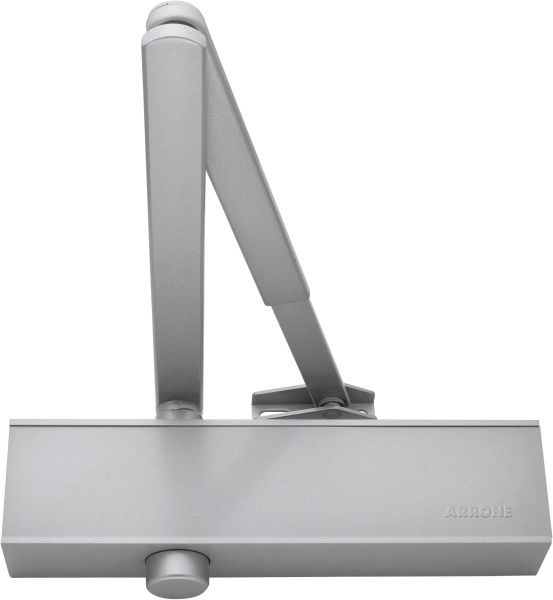

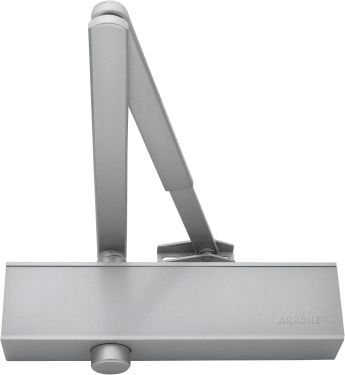

AR5200-SE Hoppe Arrone Size 2-5 Overhead Door Closer c/w Backcheck - Silver (87112570)

Description

ARRONE overhead door closing device:

• Power size: 3 to 5 adjustable by spring tension (Size 2 by template)

• Function: Closing, latching, backcheck

• Cover: Slide cover

• Maximum door width: 1,250 mm (Fig 1), 1,100 mm (Fig 6 and Fig 61)

• Maximum door weight: 100 kg (Fig 1), 80 kg (Fig 6 and Fig 61)

• Arm application: Fig 1, Fig 6 and Fig 61 fixing positions

• Successfully type tested for conformity to all the requirements of BS EN 1154:1997

• - Door mount pull (Fig 1): 4 | 8 | 5/2 | 1* | 1 | 4

• - Door mount push (Fig 6): 3 | 8 | 4/3 | 1* | 1 | 4

• - Transom mount push (Fig 61): 4 | 8 | 4/2 | 1* | 1 | 4

• Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors and 240 minutes on steel fire doors.

• CE Marked: AD0239, UKCA Marked: AD7685

• Certifire approved: CF295, CE DOP: HUK0005, UKCA DOP: HUK0005-UK
