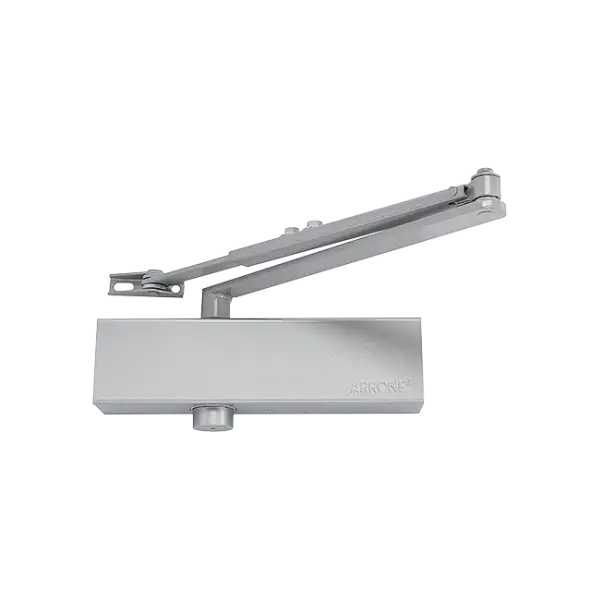

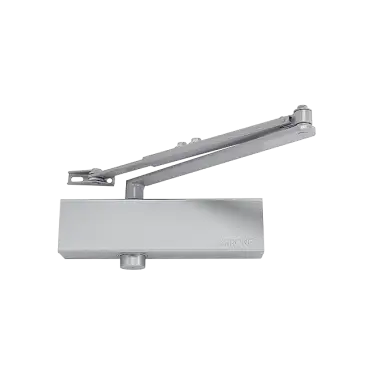

AR5500SD-SE Hoppe Size 2-5 Overhead Door Closer for Steel Doors - Silver (50018590)

Description

Power size: 2 to 5 adjustable by spring tension

Function: Closing speed, latching speed, back check

Cover: Slide cover

Arm application: Fig 1 and Fig 6 fixing positions

Maximum door width: 1250 mm (Fig 1), 1100 mm (Fig 6)

Maximum door weight: 100 kg (Fig 1), 80 kg (Fig 6)

Testing: BS EN 1154:1997

Door mount pull (Fig 1): 3 | 8 | 5/2 | 1* | 1 | 3

Door mount push (Fig 6): 4 | 8 | 4/2 | 1* | 1 | 3

Included in a successful fire test to BS EN 1634-1. Assessed for use on up to 240 minute Steel un-insulated fire doors.

CE Marked: AD5472, UKCA Marked: AD7692
