AR9200-SE Hoppe Arrone Size 2-6 Overhead Spring Door Closer c/w Backcheck - Silver (87109286)

Description

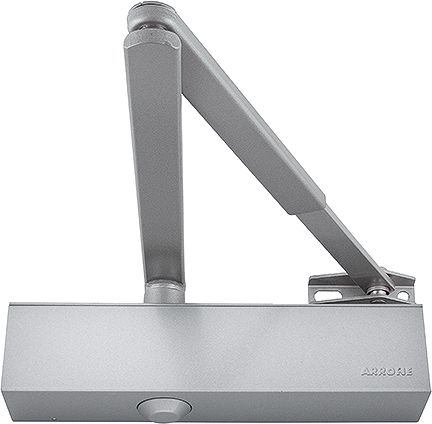

ARRONE overhead door closing device:

• Power size: 2 to 6 adjustable by spring tension

• Function: Closing speed, latching speed, back check

• Cover: Slide cover

• Maximum door width: 1400 mm (Fig 1)

• Maximum door weight: 120 kg (Fig 1)

• Arm application: Fig 1 and Fig 6 & Fig 61 fixing positions

• Testing: BS EN 1154:1997; BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors

• - Door mount pull (Fig 1), Frame mount push (Fig 61): 4 | 8 | 6/2 | 1* | 1 | 3

• - Door mount push (Fig 6): 4 | 8 | 3/5 | 1* | 1 | 3

• CE Marked: AD0162, UKCA Marked: AD7684

• Certifire approved: CF295; CE DOP: HUK0029, UKCA DOP: HUK0029-UK
