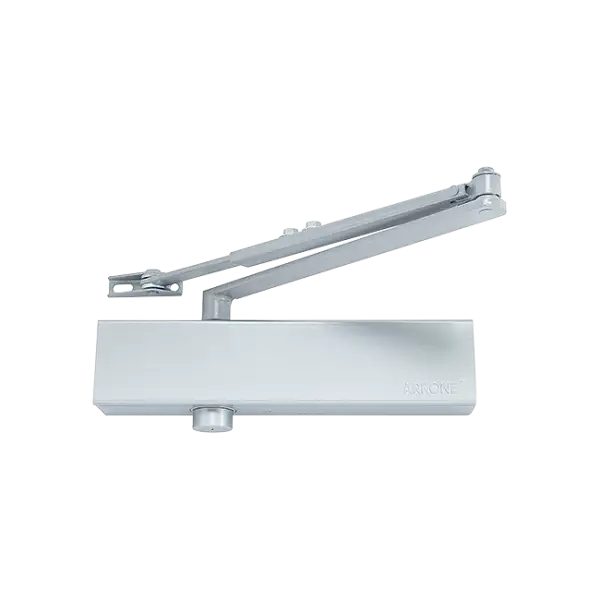

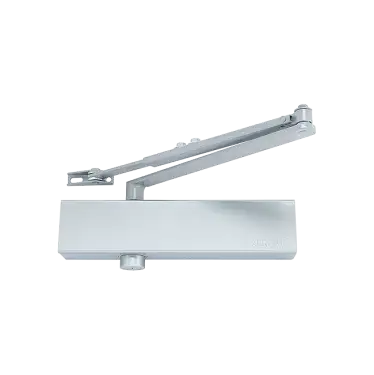

AR9500SD-SE Hoppe Size 2-6 Heavy Duty Overhead Door Closer for Steel Doors - Silver (50017809)

Description

Power size: 2 to 6 adjustable by spring tension

Function: Closing speed, latching speed, back check

Cover: Slide cover

Arm application: Fig 1, Fig 6 and Fig 61 fixing positions

Maximum door width: 1400 mm (Fig 1 & Fig 61), 1100 mm (Fig 6)

Maximum door weight: 120 kg (Fig 1 & Fig 61), 100 kg (Fig 6)

Testing: BS EN 1154:1997

Door mount pull (Fig 1): 4 | 8 | 6/2 | 1* | 1 | 3

Door mount push (Fig 6): 3 | 8 | 5/2 | 1* | 1 | 3

Transom mount (Fig 61): 4 | 8 | 6/2 | 1* | 1 | 3

Included in a successful fire test to BS EN 1634-1. Assessed for use on up to 240 minute Steel un-insulated fire doors.

CE Marked: AD5473, UKCA Marked: AD7693
