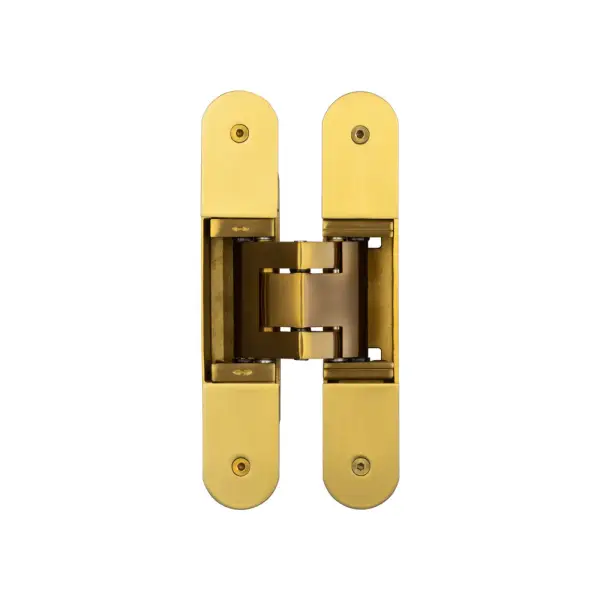

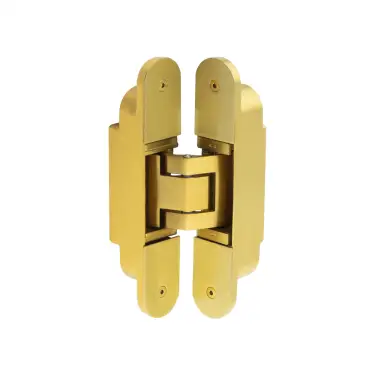

CH100SB Frelan Hardware Ghost 160mm Concealed Hinge Satin Brass

Description

The Ghost Concealed Door Hinge CH100SB in Satin Brass offers a premium, fully hidden solution for internal residential and commercial doors. Designed for strength, smooth operation, and a flush finish, it supports heavy-duty applications while maintaining a sleek appearance. Fully 3D adjustable for precise alignment during installation.

KEY FEATURES:
- Suitable For: Flush, unrebated quality timber doors
- Finish: Antique Brass
- 3D Adjustable: Height, depth and lateral movement
- Material Grade: 304g Stainless Steel
- Concealed Fixings: Removeable Cover Plates
- Fire Rated: FD60 w/ 2mm Graphite Flexifire
- Door Weight: 120KG
- Maintenance Free
- Fixings: 2 Allen keys 8No SSS wood screws 4No cover plates
- Suitable for: Internal - Residential / Commerical
- Mechanical Warranty: 5 Years

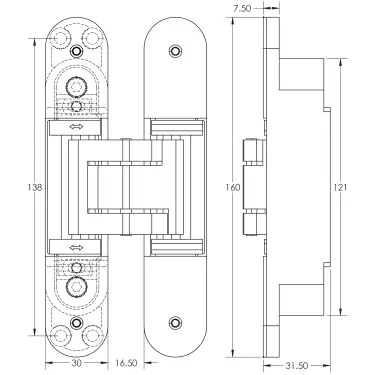

DIMENSIONS:
- Size: 160mm
- Overall Size: 160 x 31.5 x 76.5mm
- Projection: 7.5mm
- Fixing Centres: 138mm
- Thickness: 7mm
- Suitable Door Thickness: 35 – 54mm

We strongly recommend requesting a sample before committing to any cutting and drilling.

STANDARDS & CERTIFICATIONS
