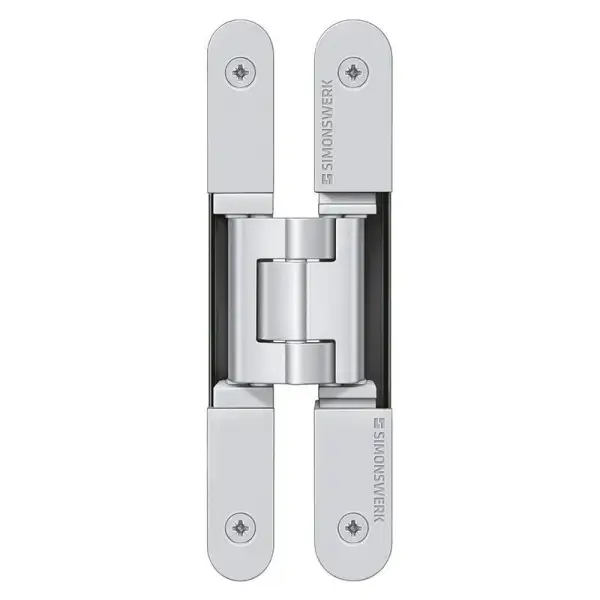

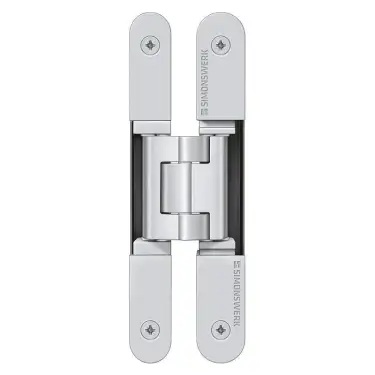

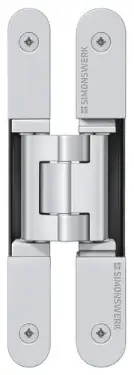

TE 240 3D Simonswerk TECTUS Concealed Hinge 155mm x 21mm (60kg)

Description

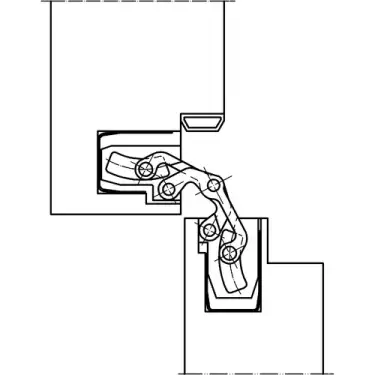

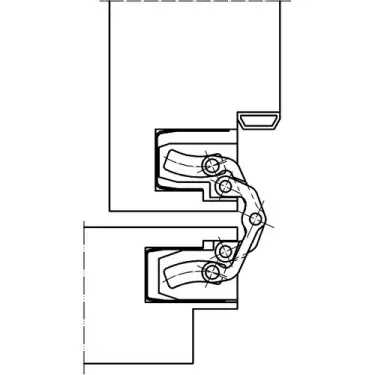

SIMONSWERK TECTUS hinge TE 240 3D. Completely concealed for unrebated and rebated flush doors with timber, steel and aluminium frames. Load capacity up to 60 kg, opening angle up to 180°, overall length 155 mm, right hand and left hand applicable, maintenance-free slide bearings, three-dimensionally adjustable: side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm.

The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m),

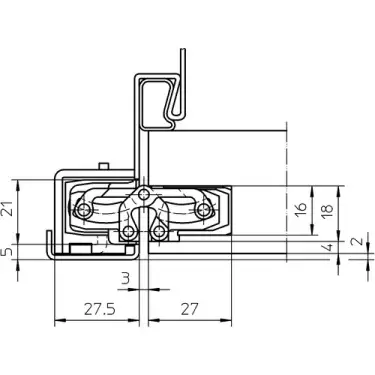

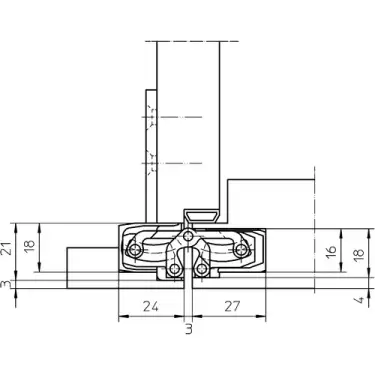

Technical details:

Load capacity: 60,0 kg

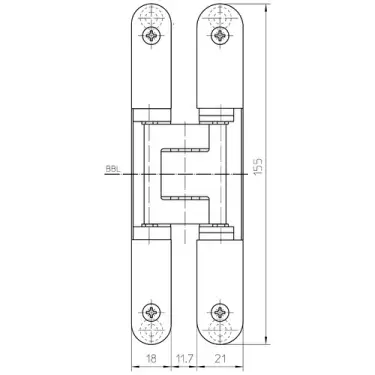

Overall length: 155,0 mm

Width (door part): 18,0 mm

Width (frame part): 21,0 mm

Cutter diameter: 16,0 mm

Collar ring diameter: 30,0 mm

Opening angle: 180°
